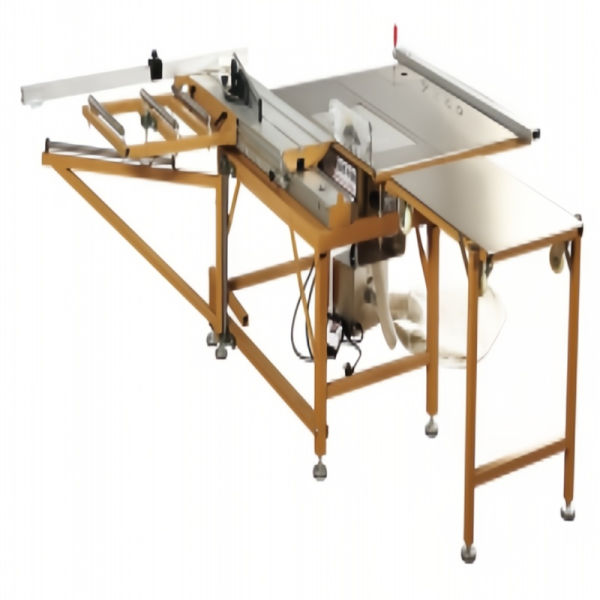

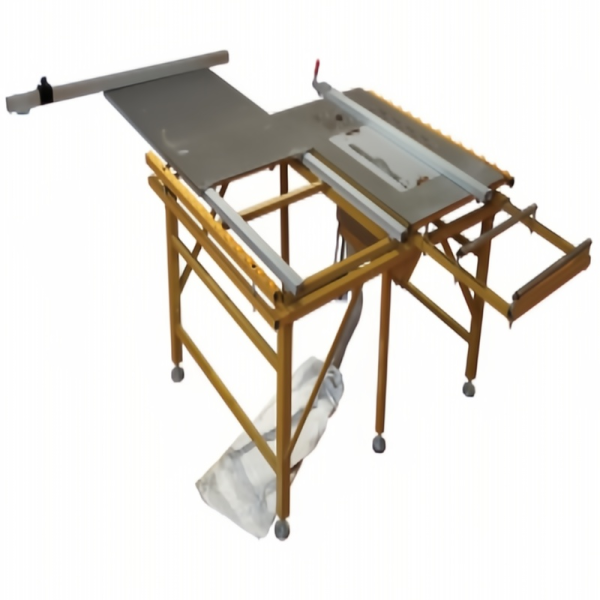

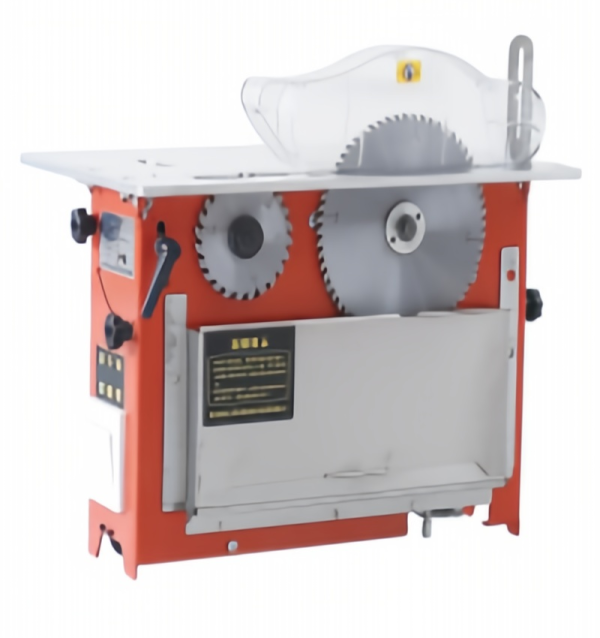

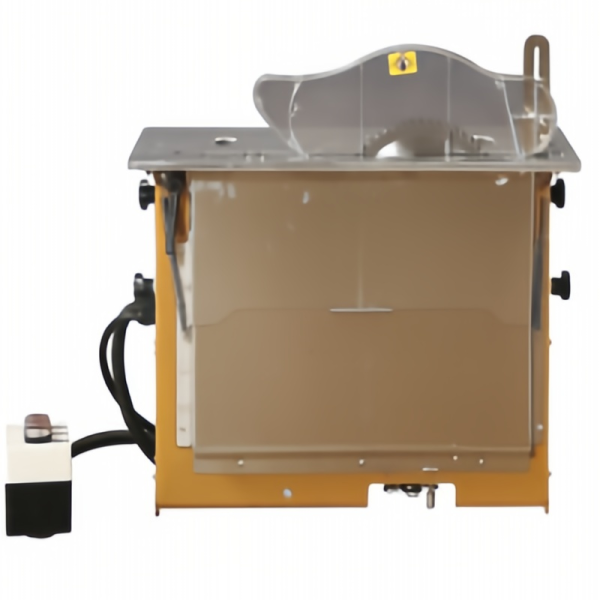

Sliding Table Saw

Swing Arm Edge Bander Technical Specifications

Structural Design:

• Swing Arm Mechanism:
  • Rotating arm design with telescopic support arms

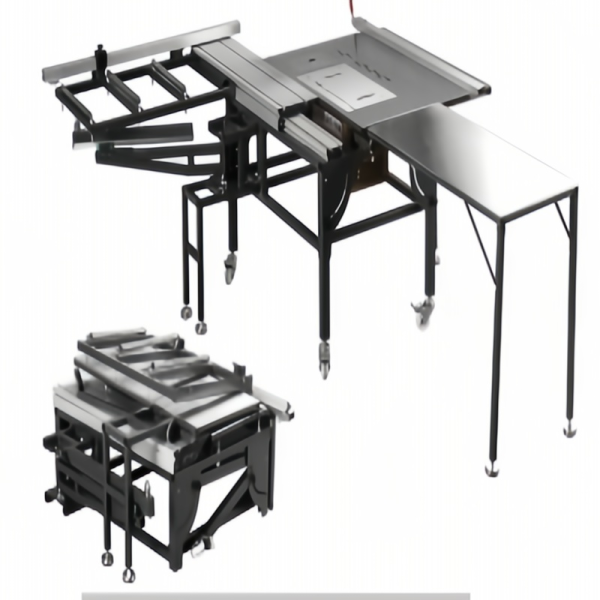

  • Expandable working width (Expanded size: 2400×2200mm / Folded size: 1000×600×330mm)
  • Wheel-equipped extension arms for panel handling
• Suction System:
  • φ200mm vacuum cups (Max adsorption force: 300N)
  • Multi-point positioning system (3 positioning modes)
• Gluing System:
  • Dual-side adhesive application (Simultaneous panel & edge gluing)
  • 3.5L glue tank (Preheating time <15min)

Performance Parameters:

• Processing Capacity:
  • Panel thickness range (Min: 10mm / Max: 60mm)
  • Edge band width compatibility (0.4-3mm)
• Precision Control:
  • Laser alignment system (Accuracy: ±0.3mm)
  • Automatic length detection (Base length: 400mm)
