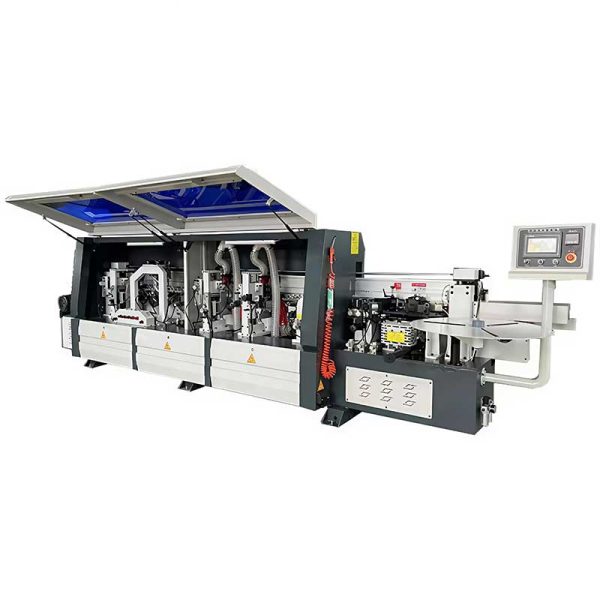

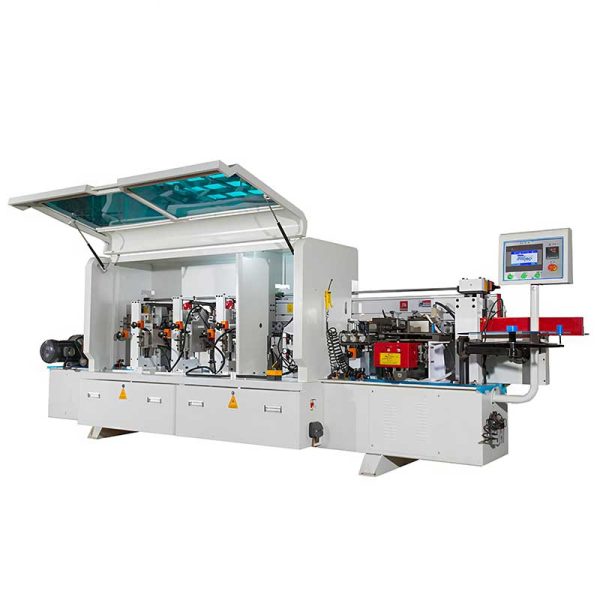

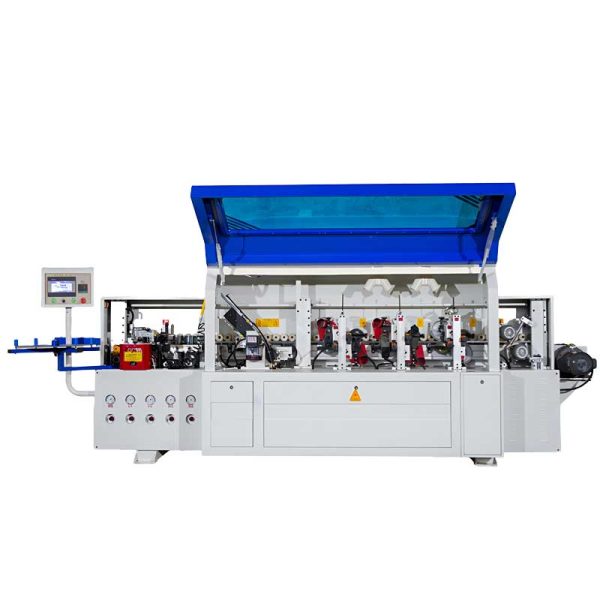

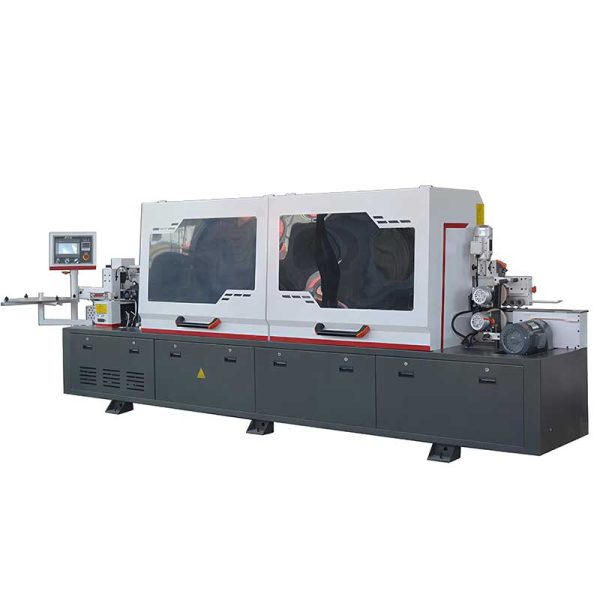

Heavy-duty Edge Banding Machine

Large-Scale Edge Banding Machine Technical Specifications

High-Efficiency Production:
- Automated continuous operation system
- Integrated processes: material feeding → glue application → edge banding → trimming → polishing
- Production capacity: 15-25m/min (suitable for mass production)
Premium Edge Quality:
- Precision glue distribution system (coating uniformity: ±0.02mm)
- Dual-stage trimming & polishing units (surface roughness Ra ≤0.8μm)
Operational Stability:
- Heavy-duty welded steel frame (vibration reduction ≤0.05mm)
- 24/7 continuous operation capability (MTBF ≥2000 hours)
Customization Options:
- Client-specific configuration available

Material Compatibility:
- Panel types: solid wood, MDF, particleboard, etc.
- Edge band materials: PVC (0.4-3mm), melamine (0.6-2mm), wood veneer (0.5-1.2mm)
Edge Processing Techniques:
- Standard straight edge banding
- Special processes:
  - 45-degree miter edge
  - Contour profiling (radius ≥5mm)
  - Soft-forming edge banding
  - Post-forming edge banding
Pre-Milling Function:
- Optional CNC pre-milling unit (spindle power: 3kW)
- Edge preparation accuracy: ±0.1mm⁴
