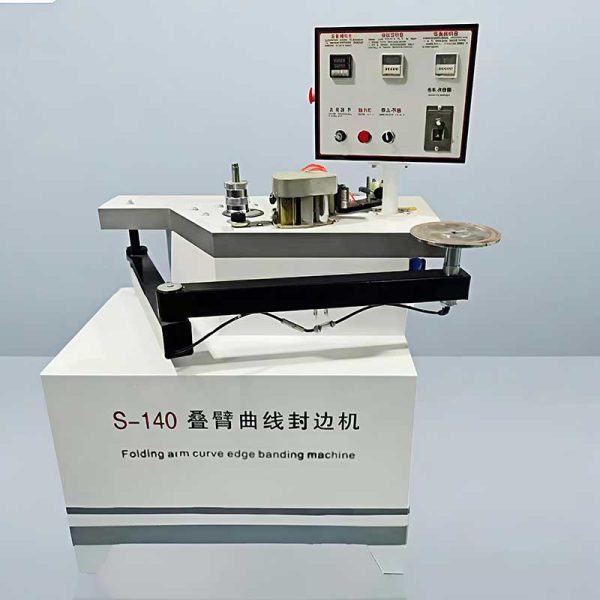

Curved Edge Banding Machine

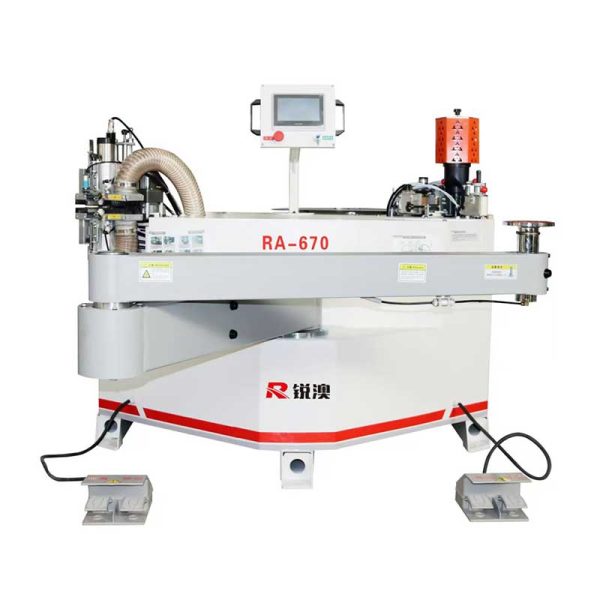

Swing Arm Edge Bander Technical Specifications

Structural Design:

• Swing Arm Mechanism:
  • Rotating arm design with telescopic support arms
  • Adjustable working width via sliding wheel system
  • Handles circular/oval/rounded rectangular panels
• Suction System:
  • 200mm diameter vacuum cups (max. holding force 300N)
  • Multi-point positioning for panel stabilization
• Gluing System:
  • Dual-side adhesive application technology
  • High-capacity glue tank (3.5L) with rapid heating
  • Quick-change mechanism for PUR/hot-melt adhesives

Performance Characteristics:

• Irregular Shape Processing:
  • Handles concave/convex/S-curve/wave profiles
  • Stepless speed regulation (0-8m/min)
• Precision Operation:
  • Laser positioning system (±0.3mm alignment accuracy)
  • Automatic length detection (400mm base length)
• User Controls:
  • Three operation modes: Auto/Timer/Manual
  • Foot pedal control for profile cutting
• Material Compatibility:
  • Edge types: PVC/PET/melamine/wood (0.4-3mm thickness)
  • Panel thickness capacity: 10-60mm
